Blast Proof Doors And Hatches

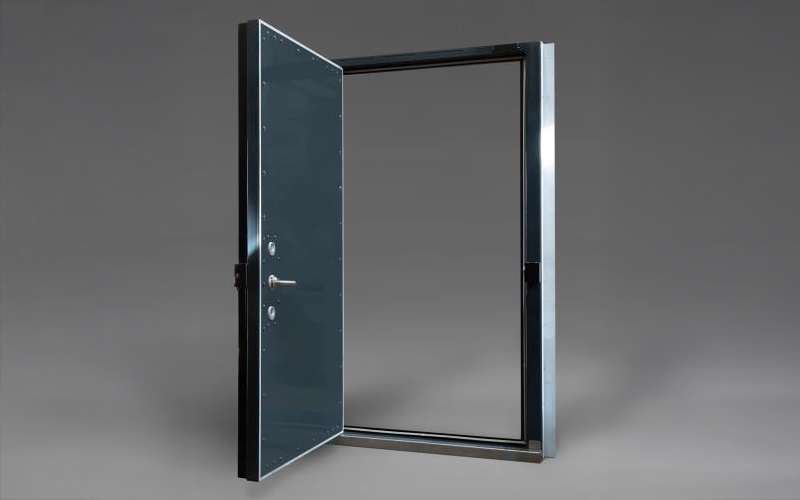

Unlike most other doors, a Blast Resistant Door is supplied as a complete assembly by EEP Parts include the door, frame, anchors, hardware, and accessories. This must be done because items such as the door, frame, latches, and hinges are of bespoke manufacture and are independent parts of Blast Resistance. To facilitate the specification of individual door assemblies, the door type, blast effects, rebound, deformation limits, operating forces, hardware, and accessories for each door are brought together under a Blast Door assembly specification.
Structural steel doors shall be flush mounted into frames, or surface mounted. Reinforced concrete doors shall be surface mounted. Doors can be manually operated, side hinged, swinging type.
Frames and anchors shall be capable of transferring blast and rebound reactions to the adjacent supporting structure. Resistance to blast shall be demonstrated either by design calculations or tests on prototype design assemblies.
Design Requirements
EEP design Blast Resistant Doors for a wide range of applications, particularly for EMPP (Electro-Magnetic Pulse Protection).
Careful design is required to take into consideration the following:
- Static Material Strength
- Dynamic Material Strength
- Structural Member Design
- Blast Effects
- Dynamic Analysis and Deformation Rebound Resistance
- Overpressure
- Overpressure Direction
- Fragment Resistance
Surface Treatment
The frames are primed for a high level of corrosion protection.
Construction
Blast Doors are constructed using steel box section and steel sheet which is fully welded as per the design specification. The frame is designed for casting into the door opening. It is recommended that blast door frames are cast into the building fabric. This provides a stronger mounting and means no drilling, or unnecessary penetrations through the host building wall around the opening.
Installation
European EMC Products in offer a complete or supervised installation service for all of our doors.
Standard Specification
Blast Resistant Doors are to be designed to resist the effects of a cased 500lb charge, standard US MK117 Bomb at 100ft standoff. 25psi. In the absence of further detailed information, this has been interpreted as a standard general-purpose bomb. Class A fragment penetration.
Disclaimer
NB: All the information provided within this datasheet is for reference only. Product specifications are subject to change without notice.
